Image | SKU | Description | Packaging | Qty | Price |
| 11-1336-0 | Single stream sample system – liquid, with validation tank – pressure rating 200 psig, temperature rating 140 Deg. F., Includes 27"x27" panel for mounting inside analyzer shelter and a 33"x33" with fast loop interface components for mounting outside | EA | | $22,984.00 |
| 11-1337-0 | Dual stream sample system - liquid, with validation tank – pressure rating 200 psig, temperature rating 140 Deg. F. Includes 27"x27" panel for mounting inside analyzer shelter and a 33"x45" with fast loop interface components for mounting outside | EA | | $40,068.10 |
| 11-1338-0 | Single stream sample system – gaseous, with validation connection – pressure rating 200 psig, temperature rating 140 Deg. F. Includes 27"x27" panel for mounting inside analyzer shelter and a 33"x33" with fast loop interface components for mounting outside | EA | | $20,942.00 |
| 11-1339-0 | Dual stream sample system - gaseous, with validation connection – pressure rating 200 psig, temperature rating 140 Deg. F. Includes 27"x27" panel for mounting inside analyzer shelter and a 33"x45" with fast loop interface components for mounting outside | EA | | $23,484.00 |
| 14-1213-0 | Purge Solid State Relay, optional | EA | | $75.00 |
| 14-1214-0 | Purge Time Delay Relay, optional | EA | | $330.00 |
| 14-1435-0 | Clean Air #1 & #2 Pressure Regulator, 0-100PSI | EA | | $1,671.70 |
| 18-1576-0 | Electronics Purge Pressure Gauge, 0-15PSI | EA | | $79.40 |
| 18-1577-0 | Oven Air & Injection Purge Pressure Gauge, 0-30PSI | EA | | $83.50 |
| 18-1579-0 | Clean Air #1 & #2 Pressure Gauge, 0-100PSI | EA | | $79.40 |
| 19-1184-0 | Thermal Disk T2 | EA | | $126.70 |
| 19-1185-0 | Thermal Disk T3 | EA | | $109.20 |
| 19-1190-0 | Mains Fuse, 1 ¼” 20 Amp. | EA | | $10.60 |
| 20-1070-0 | 220 VAC to 110 VAC Transformer (optional) | EA | | $811.70 |
| 203-705-900 | NEW Valco Valve Mounting Bracket | EA | | $47.40 |
| 25-1001 | Oven Temperature Sensor | EA | | $663.40 |
| 25-1137-0 | PS1 & PS2 Oven/Burner Purge Pressure Switch | EA | | $205.00 |
| 25-1156-0 | Purge Switch, AC Static, optional | EA | | $59.20 |
| 25-1189-0 | Purge Differential Switch, optional | EA | | $128.80 |
| 25-1339-0 | Purge Keylock Switch, optional | EA | | $162.80 |
| 25-1352-0 | Sample Flow Switch | EA | | $1,789.20 |
| 25-6005 | Oven Heater | EA | | $1,189.70 |
| 27-0026 | Door Latches, Electronics Cubicle | EA | | $98.90 |
| 27-0027 | Door Latches, Oven Cubicle | EA | | $93.80 |
| 27-0064 | Electronics Cubicle Door Seal (per foot) 7 feet needed | EA | | $13.40 |
| 27-1068-0 | Cubicle Door Key | EA | | $38.70 |
| 27-1095-0 | Thermo couple compensating cable (per foot) (≈10ft needed) | EA | | $8.25 |
| 27-1108-0 | Pyrolyzer Thermocouple | EA | | $973.40 |
| 27-5006-0 | Purge Bypass Key | EA | | $91.70 |
| 29-1230-0 | Pyrolyzer Heater | EA | | $1,543.00 |
| 30-1025-0 | Quartz Pyrolyzer Tube (Looped) | EA | | $360.50 |
| 30-2004 | Manifold Pressure Regulator, 0-100PSI | EA | | $162.80 |
| 30-2009 | Oven Air & Electronics Purge Pressure Regulator, 0-25PSI | EA | | $100.00 |
| 31-0030 | Solenoid Valve (24V) | EA | | $137.00 |
| 31-1004 | PS3 Backup Purge Pressure Switch (set @ 80PSI)(Optional) | EA | | $79.40 |
| 31-1354-0 | Solenoid Manifold (4 way) | EA | | $1,682.00 |
| 33-1001 | Door Hinge (Oven and electronics) | EA | | $76.80 |
| 39-1283-0 | Cabinet NEMA 4 Stainless Steel, non-heated, 36"H x 36"W x 16"D, for enclosure of fast loop sample panel mounted outside of analyzer shelter, Single Stream
| EA | | $3,841.90 |
| 39-1572-0 | Cabinet NEMA 4 Stainless Steel, non-heated, 48"H x 36"W x 16"D, for enclosure of fast loop sample panel mounted outside of analyzer shelter, Dual Stream
| EA | | $3,399.00 |
| 39-1581-0 | Cabinet NEMA 4 painted steel, non-heated, 36"H x 36"W x 16"D, for enclosure of fast loop sample panel mounted outside of analyzer shelter, Single Stream
| EA | | $1,266.90 |
| 39-1607-0 | Cabinet NEMA 4 painted steel, non-heated, 48"H x 36"W x 16"D, for enclosure of fast loop sample panel mounted outside of analyzer shelter, Dual Stream
NOTE: If heated cabinet required order heater below | EA | | $2,543.00 |
| 45-1235-0 | Clean Air #1 & #2 Measuring 3 Way Valve | EA | | $182.40 |
| 45-1821-0 | Sample Divert Valve Assembly (SOV) | EA | | $869.00 |
| 45-1822-2 | Backup Purge Valve (Optional) | EA | | $785.90 |
| 45-1823-0 | VALCO Injection Valve Rotor (6 port, 1.0 µl) | EA | | $343.00 |
| 45-1835-0 | VALCO Injection Valve Rotor (10 port, 1.0 µl) | EA | | $423.40 |
| 47-1344-0 | Oven Purge Vent, PV2 | EA | | $42.30 |
| 47-1362-0 | Sample Filter, in-line, 2 micron | EA | | $302.90 |
| 47-1475-0 | Air carrier gas scrubber, 110 VAC / 60 | EA | | $6,385.00 |
| 47-1480-0 | Air carrier gas scrubber, 220 VAC / 50 Note: The air scrubber is a Balston Model 75-82S Explosion Proof Zero Air Generator certified for CSA Class 1, Div. 1, Group B,C,D. The Zero Air Generator will remove hydrocarbons from compressed air to a concentration of < 0.1 ppm at a capacity of 1000. (Not available with SOLA II Trace) | EA | | $5,922.50 |
| 47-1644-0 | Sample Filter, in-line, 0.5 micron | EA | | $296.70 |
| 48-1005-0 | Purge Relay socket, 8-pin, optional | EA | | $62.00 |
| 49-1162-0 | Mains Power Line Filter | EA | | $123.00 |
| 53-1116-0 | Oven Door Seal (1 per door or oven face) | EA | | $281.20 |
| 55-1220-0 | TCP/IP Bridge Board | EA | | $1,028.00 |
| 56-1074-0 | Pyrolyzer Heating Element Connecting Block | EA | | $51.50 |
| 56-1150-0 | Pyrolyzer Thermocouple Connecting Block | EA | | $25.80 |
| 63-1135-0 | Pyrolyzer Chamber ‘O’ ring Seal | EA | | $56.70 |
| 63-1150-0 | DINFA Valve Actuator ‘O’ Ring Kit | EA | | $740.60 |
| 63-1158-0 | VALCO Injection Valve O-rings (Actuator,High temperature) | EA | | $42.90 |
| 64-1303-0 | Sulfinert Tubing 1/8” | EA | | $66.00 |
| 64-1304-0 | Sulfinert Tubing, 1/16” | EA | | $64.90 |
| 68-2106-0 | Purge Barbed Connector (white), optional | EA | | $1.10 |
| 74-1048-0 | Mixing Chamber | EA | | $905.40 |
| 75-1332-0 | VALCO Injection Valve assembly (6-port, 1.0 µl) | EA | | $2,871.70 |
| 75-1333-0 | VALCO Injection Valve Head (6 port, 1.0 µl) | EA | | $1,821.10 |
| 75-1334-0 | DINFA Injection Valve Slider (1.2 µl) | EA | | $547.00 |
| 75-1335-0 | DINFA Injection Valve assembly (8-port, 1.2 µl) | EA | | $6,480.80 |
| 75-1348-0 | Pneumatic Actuator (injection valve) 6 port valve | EA | | $1,339.00 |
| 75-1350-0 | Pneumatic Actuator (injection valve) 10 port valve | EA | | $784.90 |
| 85-1164-0 | 24 VDC Power Supply | EA | | $330.70 |
| 85-1173-0 | Analogue Input Option Power Supply | EA | | $181.30 |
| 88-1216-0 | RS-232 Serial Cable (Terminal & Workstation) | EA | | $258.00 |
| 89-2089-G | Oven Temperature Controller | EA | | $2,142.40 |
| 89-2650-G | Pyrolyzer Temperature Controller | EA | | $2,174.00 |
| 89-2663-0 | Electronics Enclosure Purge Vent, PV1 | EA | | $181.30 |
| 89-2803-0 | Solenoid Relay Board (24V) | EA | | $1,104.20 |
| 89-2839-0 | Pyrolyzer Assembly | EA | | $11,247.60 |
| 89-2896-0 | Analogue Input Option 4-20mA I/P PCA Board | EA | | $1,200.00 |
| 89-2897-0 | CPU Board | EA | | $1,382.30 |
| 89-2898-0 | I/O Board | EA | | $2,008.00 |
| 89-2899-0 | MODBUS RS-485 Option | EA | | $766.00 |
| 89-2913-0 | Modbus Workstation Software (no PC) | EA | | $4,357.00 |
| 89-2913-1 | Modbus workstation software (with PC) | EA | | $17,187.70 |
| 97-1411-0 | Kit, Heater Assembly, NEC, 500W, 120VAC | EA | | $4,310.00 |
| 97-1550-0 | Liquid calibration kit | EA | | $3,926.40 |
| 97-1563-0 | Kit, Heater Assembly, ATEX, 200W, 220VAC | EA | | $2,300.00 |
| 97-1579-0 | Analogue Input Option Set of Boards | EA | | $2,260.90 |
| 97-1580-0 | TCP/IP Option | EA | | $1,596.50 |
View | 97-1589-0 | Start-Up Spare Parts Kit, Standard & Trace Bench, Valco Valve, Liquid Phase Applications Includes: 4 x Ferrules for pyrolyzer tube fittings, graphite, 2 x Pyrolyzer tube, looped, 2 x Pyrolyzer, O-ring 5 5/8" ID x 5 7/8" OD 1/8" width, 2 x Rotor, liquid sample valve, 1.0 ul, 4 port or 6 port | EA | | $1,350.40 |
View | 97-1589-1 | Start-Up Spare Parts Kit, Standard Bench, Dinfa Valve, Liquid Phase Applications includes: 4 x Ferrules for pyrolyzer tube fittings graphite, 2 x Pyrolyzer tube looped, 2 x Pyrolyzer, O-ring 5 5/8" ID x 5 7/8" OD 1/8" width, 1 x Sliderblock, 1.2 ul | EA | | $2,035.30 |

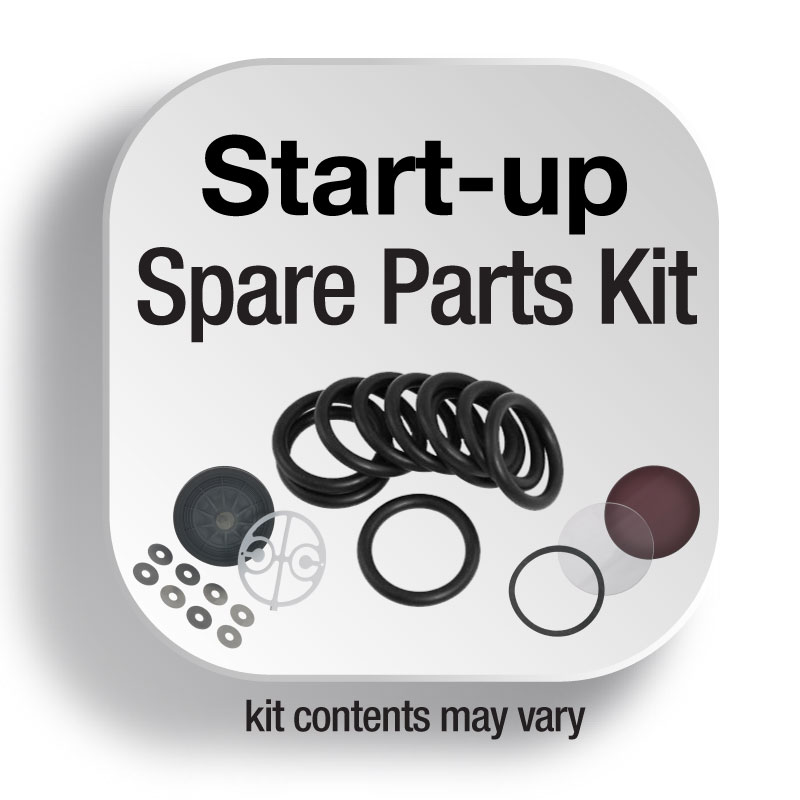

View | 97-1589-2 | Start-Up Spare Parts Kit, Standard & Trace Bench, Valco Valve, Gas Phase Applications, 4 x Ferrules for pyrolyzer tube fittings, graphite, 2 x Pyrolyzer tube, looped, 2 x Pyrolyzer, O-ring 5 5/8" ID x 5 7/8" OD 1/8" width, 2 x Rotor, 10 port, gas | EA | | $1,296.80 |
View | 97-1589-F1 | One Year Spare Parts, Standard & Trace Bench, SOLA II CV includes: 1 x Thermocouple, pyrolyzer S type, 1 x Heater for pyrolyzer assembly, 2 x Pyrolyzer tube looped, 4 x Rotor, 10 port gas, 1 x Rotor, 4 port gas, 2 x O-ring 5 5/8" ID x 5 7/8" OD 1/8" width, Pyrolyzer, 1 x O-ring kit, actuator, 4 x Ferrules for pyrolyzer tube fittings graphite, 1 x Filter, Inline, 2 micron, 1/8" tube connection, 1 x Filter, Inline, 0.5 micron, 1/8" tube connection | EA | | $6,153.00 |

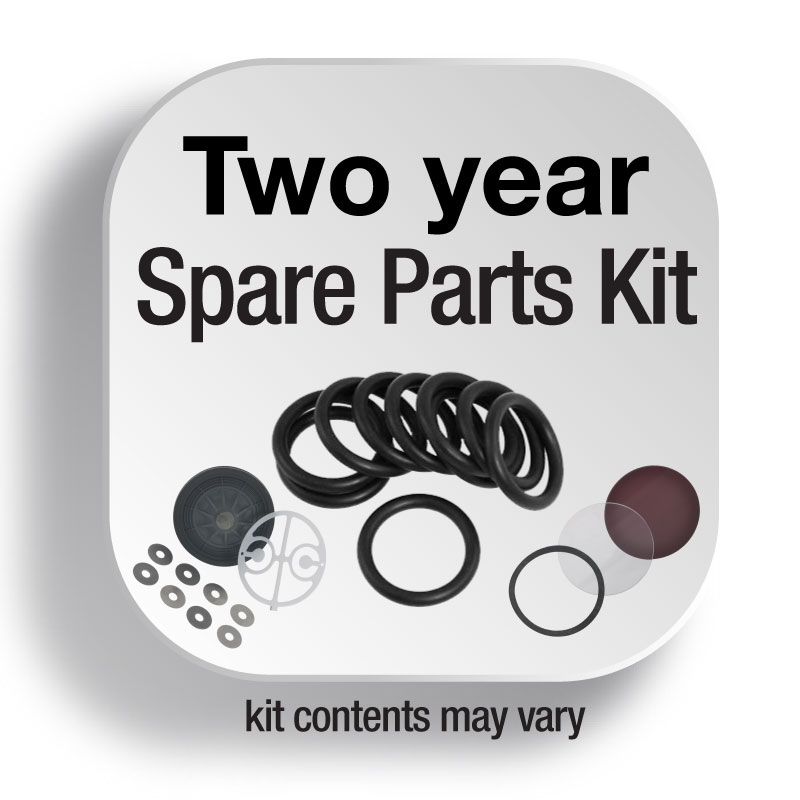

View | 97-1589-F2 | Two Year Spare Parts, Standard & Trace Bench, SOLA II CV includes: 1 x Thermocouple. S-Type, Pyrolyzer, 2 x Heater, Fiber Insulated, 60V, 450W, 3 x Pyrolyzer tube looped, 1 x Valve, 10 Port, 1/16", 150PSI, 175C, complete assembly, 8 x Rotor, 10 Port Gas, 4 x Rotor, 4 Port, Valco Valve, 1 x Valve head, 10 Port, Gas, less sample loops, 4 x O-ring 5 5/8" ID x 5 7/8" OD 1/8" width, Pyrolyzer, 2 x O-ring kit, valve actuator, 8 x Ferrules for pyrolyzer tube fittings graphite, 1 x Filter, Inline, 2 micron, 1/8" tube connection, 2 x Filter, Inline, 0.5 micron, 1/8" tube connection, 1 x Lamp, Xenon Flash Lamp for SO2 Bench | EA | | $14,729.00 |
View | 97-1589-FC | Critical Operation Spare Parts, Standard Bench Only, SOLA II CV includes: 1 x Valve, 10 Port, 1/16", 150PSI, 175C, complete assembly, 1 x PUVF Bench - Standard / complete, 1 x Pyrolyzer Assembly - complete, 1 x PUVF Power supply PCB, 1 x PUVF Trigger Pak - Standard Bench, 1 x PUVF Flasher supply PCB, 1 x I/O PCB, 1 x Lamp, Xenon Flash Lamp for SO2 Bench, 1 x Pressure Regulator, Forward Pressure, Sulfinert coated. 0-25psi, 1 x Pressure Regulator, Back Pressure, 0-25psi | EA | | $33,583.20 |
View | 97-1589-FS | Start-Up Spare Parts, Standard & Trace Bench, SOLA II CV includes: 4 x Ferrules for pyrolyzer tube fittings graphite, 2 x Pyrolyzer tube looped, 2 x Pyrolyzer, O-ring 5 5/8" ID x 5 7/8" OD 1/8" width, 2 x Rotor, 10 port, gas, less external sample loops | EA | | $2,181.60 |
View | 97-1589-TCV | Critical Operation Spare Parts, Trace Bench Only, SOLA II TRACE CV includes: 1 x Valve, 10 Port, 1/16", 150PSI, 175C, complete assembly, 1 x PUVF Bench - TRACE / complete, 1 x Pyrolyzer Assembly - complete, 1 x PUVF Power supply PCB, 1 x PUVF Trigger Pak - Standard Bench, 1 x PUVF Flasher supply PCB, 1 x I/O PCB, 1 x Lamp, Xenon Flash Lamp for SO2 Bench, 1 x Pressure Regulator, Forward Pressure, Sulfinert coated. 0-25psi, 1 x Pressure Regulator, Back Pressure, 0-25psi | EA | | $29,350.90 |
View | 97-1590-0 | One Year Spare Parts Kit, Standard & Trace Bench, Valco Valve, Liquid Phase Applications includes: 1 x Heater for pyrolyzer assembly, 4 x Ferrules for pyrolyzer tube fittings, graphite, 2 x Pyrolyzer tube, looped, 2 x Pyrolyzer, O-ring 5 5/8" ID x 5 7/8" OD 1/8" width, 1 x Thermocouple, pyrolyzer S type, 4 x Rotor, liquid sample valve, 1.0 ul, 4 port or 6 port, 1 x Filter, in-line 2 micron, 1/8" tube connections, 1 x Filter, in-line .5 micron, 1/8" tube connections, 1 x O-ring kit for liquid injection valve actuator | EA | | $4,542.30 |

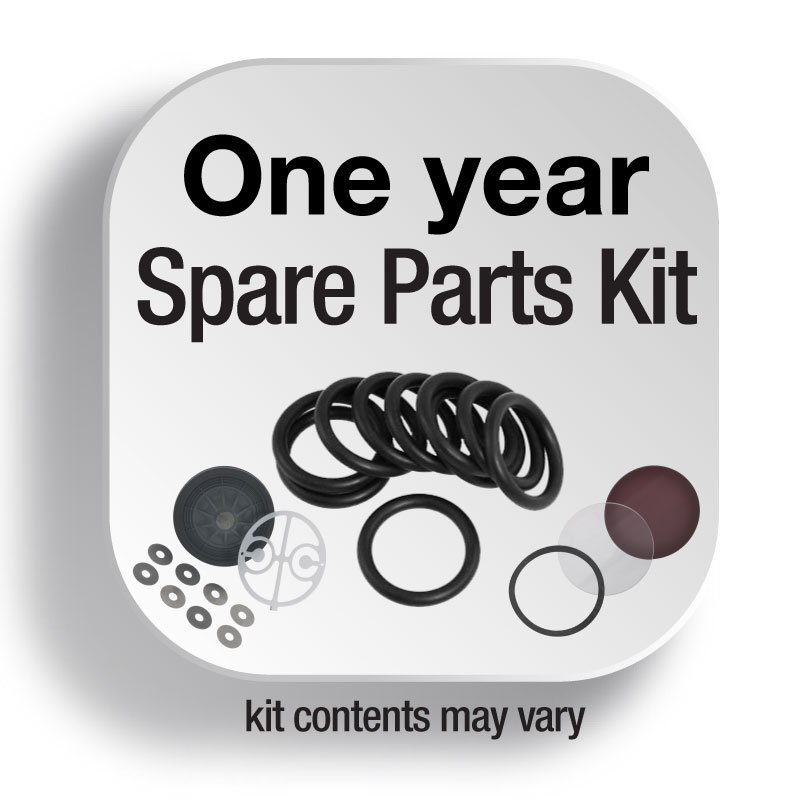

View | 97-1590-1 | One Year Spare Parts Kit, Standard & Trace Bench, Dinfa Valve, Liquid Phase Applications includes: 1 x Heater for pyrolyzer assembly, 4 x Ferrules for pyrolyzer tube fittings graphite, 2 x Pyrolyzer tube looped, 2 x Pyrolyzer, O-ring 5 5/8" ID x 5 7/8" OD 1/8" width, 1 x Thermocouple, pyrolyzer S type, 1 x Sliderblock, 1.2 ul, 1 x Filter, in-line 2 micron, 1/8" tube connections, 1 x Filter, in-line .5 micron, 1/8" tube connections | EA | | $2,989.10 |
View | 97-1590-2 | One Year Spare Parts Kit, Standard & Trace bench, Valco Valve, Gas Phase Applications includes: 1 x Heater for pyrolyzer assembly, 4 x Ferrules for pyrolyzer tube fittings graphite, 2 x Pyrolyzer tube, looped, 2 x Pyrolyzer, O-ring 5 5/8" ID x 5 7/8" OD 1/8" width, 1 x Thermocouple, pyrolyzer S type, 4 x Rotor, 10 port, gas, 1 x Filter, in-line 2 micron, 1/8" tube connections, 1 x Filter, in-line .5 micron, 1/8" tube connections, 1 x O-ring kit for injection valve actuator | EA | | $4,167.40 |
View | 97-1591-0 | Two Year Spare Parts Kit, Standard & Trace Bench, Valco Valve, Liquid Phase Applications includes: 2 x Heater for pyrolyzer assembly, 8 x Ferrules for pyrolyzer tube fittings graphite, 3 x Pyrolyzer tube, looped, 4 x Pyrolyzer, O-ring 5 5/8" ID x 5 7/8" OD 1/8" width, 1 x Filter, in-line 2 micron, 1/8" tube connections, 2 x Filter, in-line .5 micron, 1/8" tube connections, 1 x Thermocouple, pyrolyzer S type, 1 x Valve, complete 6-port for liquid, 1 x 6-port liquid valve head w/ internal sample loop, 4 x Rotor, liquid sample valve, 1.0 ul, 4 port or 6 port, 2 x O-ring kit for liquid injection valve actuator, 1 x UV Flash Lamp | EA | | $11,140.50 |
View | 97-1591-1 | Two Year Spare Parts Kit, Standard & Trace Bench, Dinfa Valve, Liquid Phase Applications includes: 2 x Heater for pyrolyzer assembly, 8 x Ferrules for pyrolyzer tube fittings graphite, 3 x Pyrolyzer tube looped, 4 x Pyrolyzer, O-ring 5 5/8" ID x 5 7/8" OD 1/8" width, 1 x Filter, in-line 2 micron, 1/8" tube connections, 2 x Filter, in-line .5 micron, 1/8" tube connections, 1 x Thermocouple, pyrolyzer S type, 1 x Sliderblock, 1.2 ul, 1 x UV Flash Lamp | EA | | $5,581.60 |
View | 97-1591-2 | Two Year Spare Parts Kit, Standard & Trace Bench, Valco Valve, Gas Phase Applications includes: 2 x Heater for pyrolyzer assembly, 8 x Ferrules for pyrolyzer tube fittings, graphite, 3 x Pyrolyzer tube, looped, 4 x Pyrolyzer, O-ring 5 5/8" ID x 5 7/8" OD 1/8" width, 1 x Filter, in-line 2 micron, 1/8" tube connections, 2 x Filter, in-line .5 micron, 1/8" tube connections, 1 x Thermocouple, pyrolyzer S type, 1 x Valve, complete 10-port for vapor samples, 1 x 10-port valve head, gas, 4 x Rotor, 10 port, gas, 2 x O-ring kit for liquid valve actuator, 1 x UV Flash Lamp | EA | | $13,015.10 |
View | 97-1592-0 | Critical Operation Spare Parts Kit, Standard Bench Only, Valco Valve, Liquid Phase Applications includes: 1 x Valve, complete 6-port for liquid, 1 x PUVF Bench - Standard / complete, 1 x Pyrolyzer Assembly - complete, 1 x PUVF Power supply PCB, 1 x PUVF Trigger Pak - Standard Bench, 1 x PUVF Flasher supply PCB, 1 x I/O PCB | EA | | $19,763.70 |

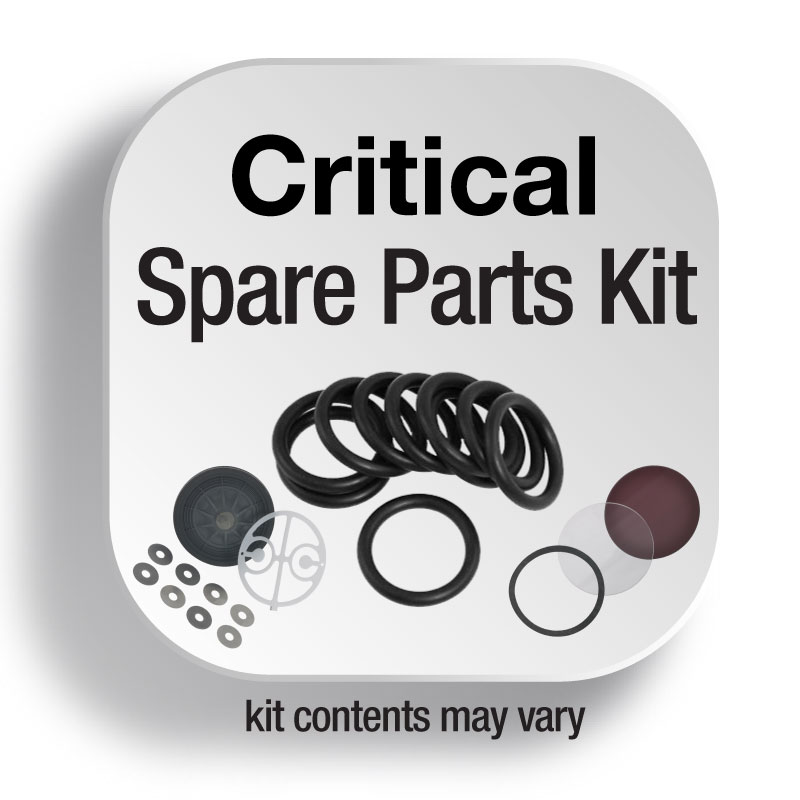

View | 97-1592-1 | Critical Operation Spare Parts Kit, Standard Bench Only, Dinfa Valve, Liquid Phase Applications includes: 1 x Valve, complete 6-port for liquid, 1 x PUVF Bench - Standard / complete, 1 x Pyrolyzer Assembly - complete, 1 x PUVF Power supply PCB, 1 x PUVF Trigger Pak - Standard Bench, 1 x PUVF Flasher supply PCB, 1 x Stream Relay PCB, 1 x I/O PCB | EA | | $21,611.50 |
View | 97-1592-2 | Critical Operation Spare Parts Kit, Standard Bench Only, Valco Valve, Gas Phase Applications includes: 1 x Valve, complete 10-port for vapor samples, 1 x PUVF Bench - Standard / complete, 1 x Pyrolyzer Assembly - complete, 1 x PUVF Power supply PCB, 1 x PUVF Trigger Pak - Standard Bench, 1 x PUVF Flasher supply PCB, 1 x I/O PCB | EA | | $19,121.00 |
View | 97-1592-3 | Critical Operation Spare Parts Kit, Trace Bench Only, Valco Valve, Liquid Phase Applications includes: 1 x Valve, complete 6-port for liquid, 1 x PUVF Bench - Standard / complete, 1 x Pyrolyzer Assembly - complete, 1 x PUVF Power supply PCB, 1 x PUVF Trigger Pak - Standard Bench, 1 x PUVF Flasher supply PCB, 1 x I/O PCB | EA | | $24,423.00 |
View | 97-1592-4 | Critical Operation Spare Parts Kit, Trace Bench, Valco Valve, Gas Phase Applications includes: 1 x Valve, complete 10-port for vapor samples, 1 x PUVF Bench - Standard / complete, 1 x Pyrolyzer Assembly - complete, 1 x PUVF Power supply PCB, 1 x PUVF Trigger Pak - Standard Bench, 1 x PUVF Flasher supply PCB, 1 x I/O PCB | EA | | $29,779.40 |
| 97-1593-0 | Dual Stream option (Second Solenoid Manifold) | EA | | $3,320.80 |
| E05510UK | FEP Tubing (to optical bench) 1/8” OD | EA | | $15.20 |
| HA-100153 | Paper Cartridge Filter (not used with Dryer Option) | EA | | $86.60 |
| HA-101291 | Perma Pure Dryer (Optional) | EA | | $2,292.80 |
| HA-101812 | Ferrules for reaction tube fittings, graphite | EA | | $26.80 |
| PCA-1002-0 | Modbus Field Termination Kit (optional) | EA | | $1,952.90 |
| TE-57P713-1 | PUVF Bench Assembly | EA | | $7,471.70 |
| TE-8666 | PUVF Flash Lamp | EA | | $1,037.30 |
| TE-8765 | PUVF Temperature Control Board | EA | | $712.80 |
| TE-8774 | PUVF Lamp Trigger Pak | EA | | $561.40 |
| TE-8868 | PUVF PMT | EA | | $2,174.00 |
| TE-8884 | PUVF Flash Intensity/Photodetector Board | EA | | $1,057.90 |
| TE-8949 | PUVF DC Power Supply Board | EA | | $780.80 |
| TE-9681 | PUVF Flash Supplies Board (standard) | EA | | $830.00 |
| TE-9829 | PUVF Mother Board | EA | | $658.20 |
| TE-9841 | PUVF Analog to Digital Board | EA | | $518.40 |
| TE-9857 | PUVF Flash Supplies Board (Trace Bench) | EA | | $1,436.70 |
| TE-9934 | PUVF Flow Sensor | EA | | $746.80 |
